Theater Operating Table Multipurpose Head Controlled (3008B) Traction Compatible

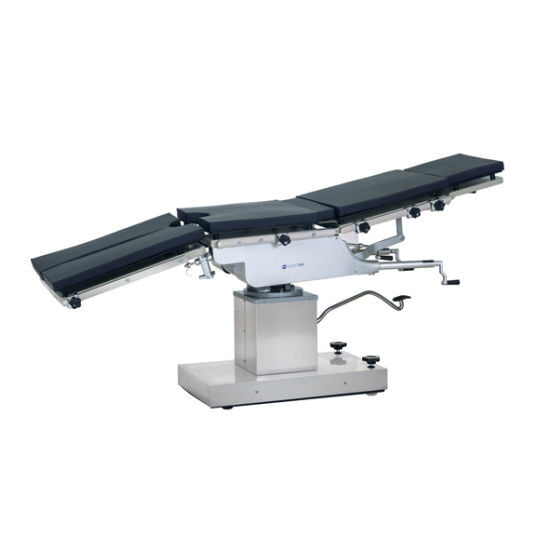

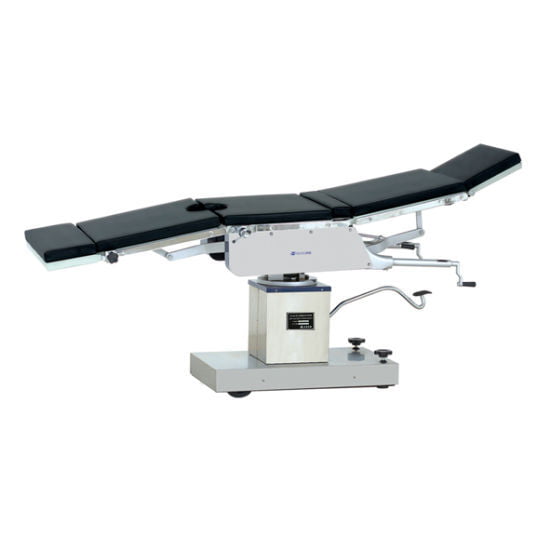

Hydraulic Theater Operating Table
The 3008 series operating table is a comprehensive multi-function type, suitable for medical units to perform various operations; all movements are controlled on the head.
Imported Y-shaped sealing ring, double insurance, no oil leakage.
Equipped with a brake device to facilitate the displacement of the operating table.
All movements are manipulated on the head.
One set of shoulder support/waist support, one set of arm rest, one set of leg support, one screen stand. Intended for surgical operations on head, neck, pleuroperitoneal cavity, perineum, limbs, In hospitals. Oil pump provides hydraulic elevation, imported hermetic ring; Operating table controlled on the two sides to achieve the required position.
Model 3008B, the base and column cover are made of high-quality 304 stainless steel, and the legs are split-legs
Length: 2050± 50mm
Width: 480± 20mm
Maximum and minimum height of the platform: (750~950)± 50mm
Forward: ≥ 30°
Backward: ≥ 25°
Left ward: ≥ 20°
Head board fold upward: ≥ 45°
Head board fold downward: ≥ 90°
Back board fold upward: ≥ 80°
Back board fold downward: ≥ 10°
Leg board fold downward: ≥ 90°
Waist board lifting: ≥ 120mm
3008 series operating table features with integrated multi-function is suitable for various operations conducted by medical unit.
Features:
Imported Y type sealing ring with good sealing performance and is durable.
All movements are manipulated from the head.
Standard Accessories:
A pair of shoulder support frame, a pair of waist support frame, a pair of arm resting frame, a pair of leg support frame, a screen frame, a pair of pedal foot board, a waistband.
Note:
3008A are made of high quality 304 stainless steel.
3008 B, C, & E are made of high quality 304 stainless steel. Separate leg part, double top.
