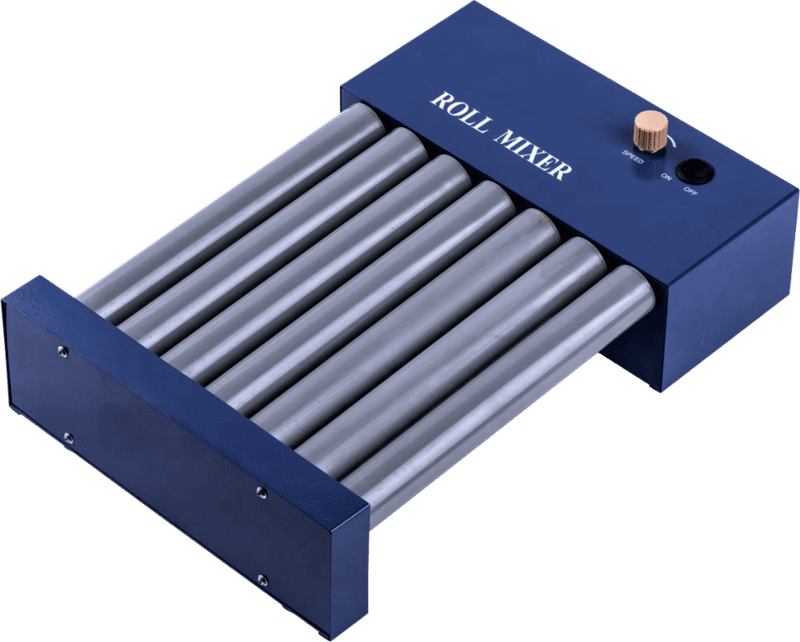

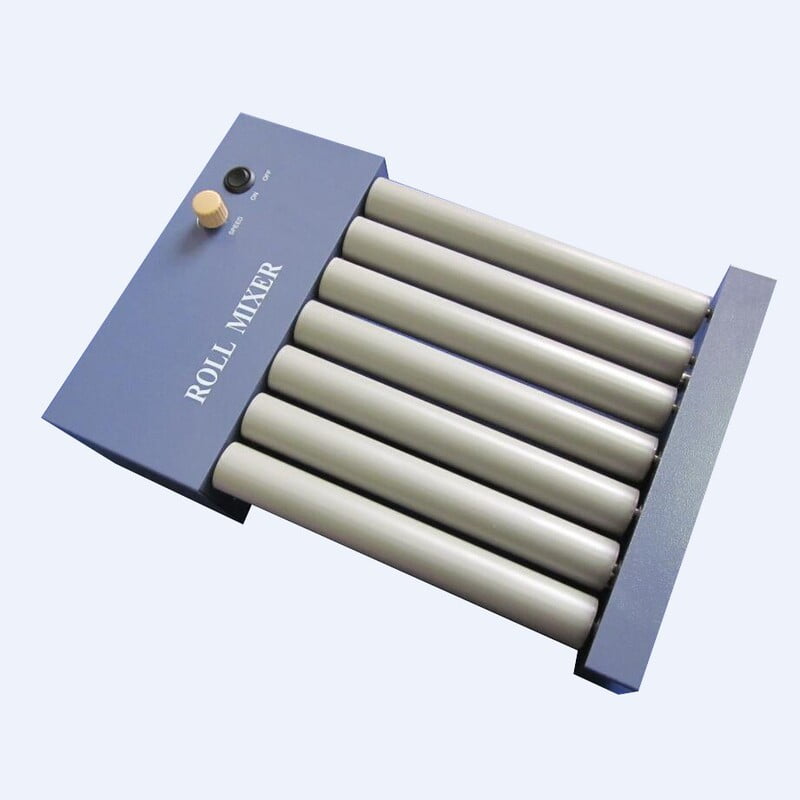

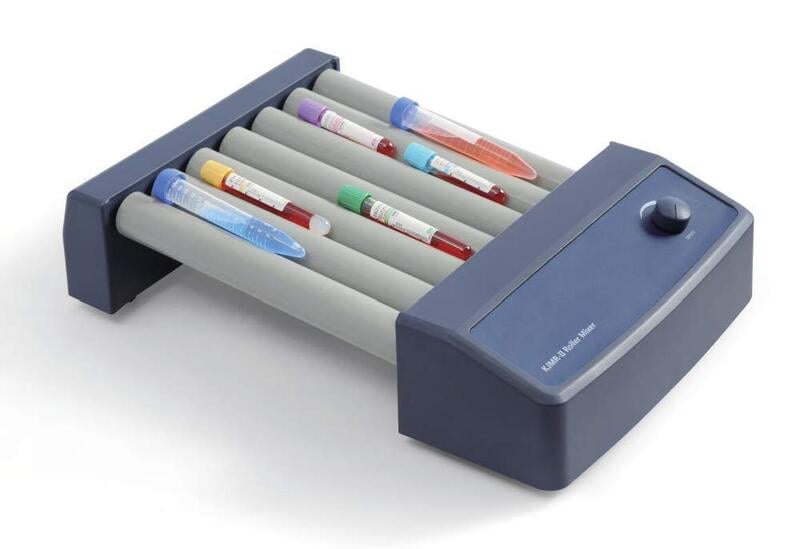

Roller Mixer Blood Laboratory
The tube roller provides a gentle but highly efficient rocking and rolling motions, ideal for mixing blood samples, viscous substances and liquid-solid suspensions. Used in a variety applications, prevention of blood coagulation and immune precipitation etc. Blood roller mixer is especially suitable for mixing blood, viscous liquids and liquid-solid suspensions. Stable motor performance, Rotation speed up to 36rpm, low noise and long service life.
Product name | Microplate Oscillator | Vortex mixer | Blood mixer | Blood mixer |
Model | ZJ-201A | XH-C | KJMR-II | KJMR-IV |
Motion type | Orbital | Orbital | Swing/roll | Orbital |
Clamp type | hemagglutination plate | Rubber head 55mm | 7 rolls | Disk 220 mm |
Speed range | Start up-2600rpm | Continuous 2800rpm | 0-80rpm | 0-80rpm |
Timer | 0~60min | ------ | ||
Amplitude size | 5mm | 5mm | 22mm | ---- |
Voltage | 110V 60Hz /220V 50Hz | |||
Dimension(mm) |
| 105×142mm | 400x270x100 | 250x250x300 |
Weight | 2kg | 2.6kg | 5kg | 4.5kg |
Features:
- Swing & Roll motions for complete mixing
- Speed range of 0-80rpm
- Seven-roller design with small footprint and easy clean
- Designed for continuous operation
- Can be used in cold rooms or in incubators
Specifications:
- Model: AM-KJMR-II
- Amplitude: 22mm
- Rocking motion: Swing/roll
- Amplitude: 22mm
- Max. load capacity: 4kg
- Number of rollers: 7
- Roller size[length]: 280mm
- Speed range: 0-80rpm
- Speed display: Scale
- Operation mode: Continuous
- Voltage: 100-240V,50/60Hz
- Power: 25W
- Dimension [D×W×H]: 450×260×120mm
- Weight: 5kg
- Permissible ambient temperature and humidity: 5-40°C,80%RH
- Protection class: IP21
Package Included:
- 1 x Tube Roller Mixer
